Moyalan Plastics India Pvt Ltd

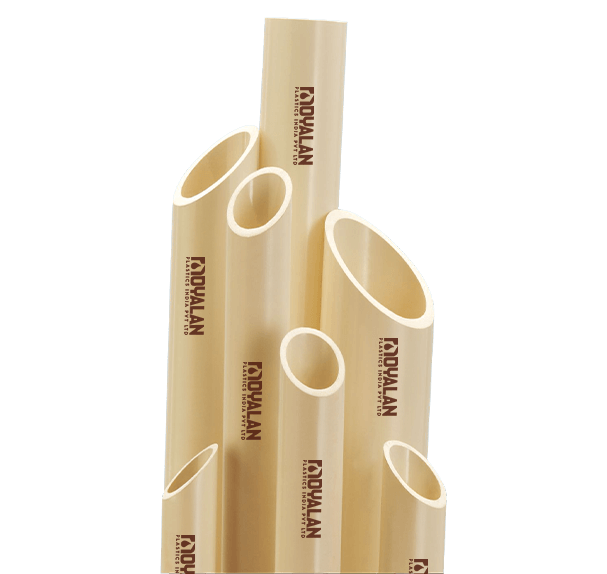

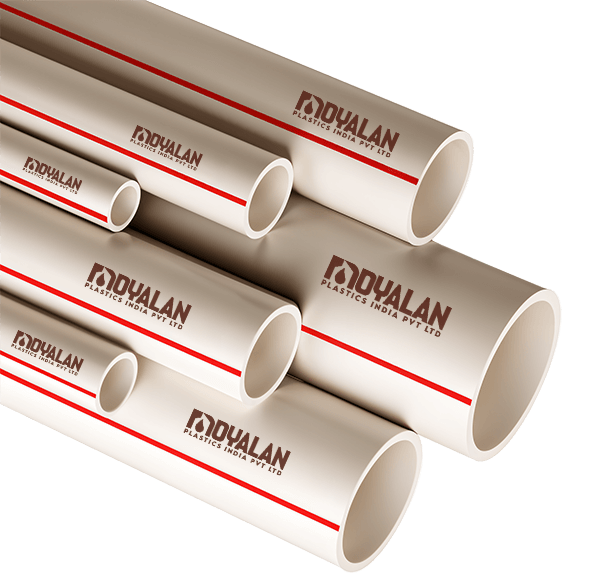

CPVC (Chlorinated Polyvinyl Chloride) pipes, manufactured to IS 15778 standards, are designed for hot and cold water distribution systems. Known for their excellent resistance to corrosion, chemicals, and high temperatures, CPVC pipes are commonly used in residential, commercial, and industrial plumbing. They provide a durable and reliable solution for water supply systems, ensuring long-term performance and safety.

Specification

Advantages

	SDR - 11	SDR - 13.5
15 – 1/2	15.8 – 16.0	1.70 – 2.20	27.60	6.80	1.40 – 1.90	21.80	5.50
20 – 3/4	22.1 – 22.3	2.00 – 2.50	27.60	6.80	1.70 – 2.20	21.80	5.50
25 – 1	28.5 – 28.7	2.60 – 3.10	27.60	6.80	2.10 – 2.60	21.80	5.50
32 – 1 1/4	34.8 – 35.0	3.20 – 3.70	27.60	6.80	2.60 – 3.10	21.80	5.50
40 – 1 1/2	41.2 – 41.4	3.80 – 4.30	27.60	6.80	3.10 – 3.60	21.80	5.50
50 – 2	53.9 – 54.1	4.90 – 5.50	27.60	6.80	4.00 – 4.60	21.80	5.50

SDR - 11

SDR - 13.5

Normal Size (mm - inch)

Outer Diameter (D) in mm
(Min – Max)

Wall Thickness (t) in mm
(Min – Max)

Working Pressure at 27°C
(kgf/cm²)

Working Pressure at 82°C
(kgf/cm²)

Wall Thickness (t) in mm
(Min – Max)

Working Pressure at 27°C
(kgf/cm²)

Working Pressure at 82°C
(kgf/cm²)

15 – 1/2

15.8 – 16.0

1.70 – 2.20

27.60

6.80

1.40 – 1.90

21.80

5.50

20 – 3/4

22.1 – 22.3

2.00 – 2.50

27.60

6.80

1.70 – 2.20

21.80

5.50

25 – 1

28.5 – 28.7

2.60 – 3.10

27.60

6.80

2.10 – 2.60

21.80

5.50

32 – 1 1/4

34.8 – 35.0

3.20 – 3.70

27.60

6.80

2.60 – 3.10

21.80

5.50

40 – 1 1/2

41.2 – 41.4

3.80 – 4.30

27.60

6.80

3.10 – 3.60

21.80

5.50

50 – 2

53.9 – 54.1

4.90 – 5.50

27.60

6.80

4.00 – 4.60

21.80

5.50

Unmatched Durability

Made from premium PVC, SWR pipes are built to last, withstanding corrosion, harsh chemicals, and extreme weather conditions.

Leak-Proof Performance

Designed with precision to be leak-resistant, these pipes prevent any wastewater or rainwater from escaping, ensuring optimal drainage.

Effortless Installation

Lightweight and easy to handle, SWR pipes simplify the installation process, making them ideal for both new constructions and renovation projects.

Versatile Usage

SWR pipes are highly versatile, effectively serving soil, waste, and rainwater drainage needs in various residential, commercial, and industrial applications.
