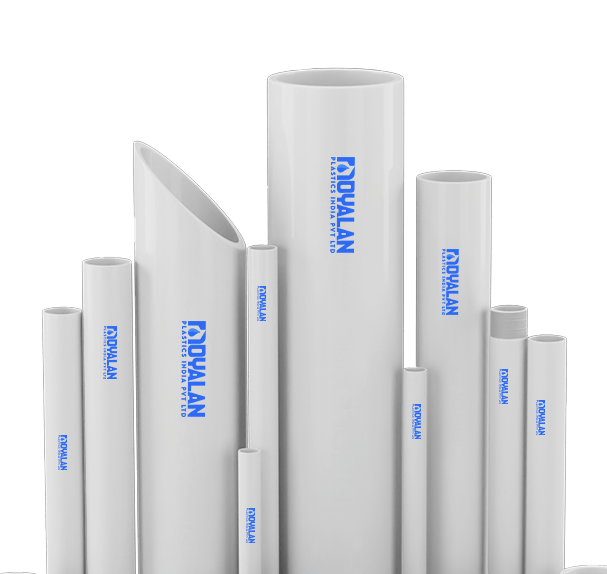

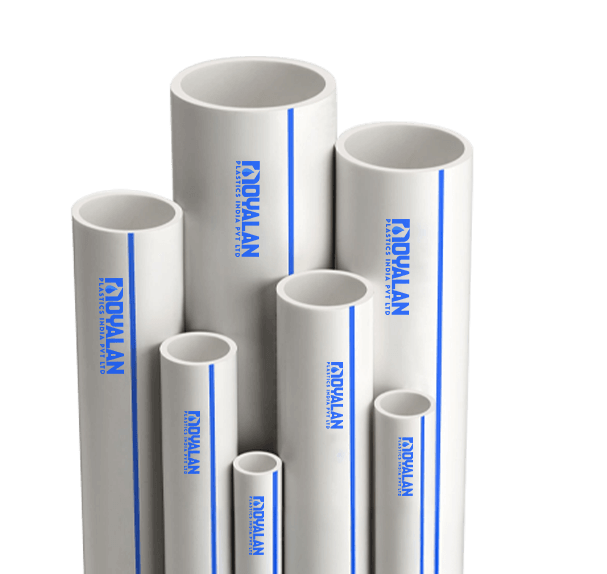

ASTM Pipes
(.5 Inch - 4 Inch)
MAIL ENQUIRY
ASTM pipes are high-quality pipes manufactured according to ASTM (American Society for Testing and Materials) standards, ensuring consistent performance and reliability in various industries. These pipes are widely used in applications such as water supply, gas distribution, and industrial piping systems. They are known for their durability, resistance to corrosion, and ability to withstand high-pressure environments, making them suitable for both residential and commercial use. ASTM pipes come in various materials, including steel, PVC, and copper, tailored to meet specific application requirements.
Specification
Advantages
Normal Size
(mm - inch)		 Outside Diameter(D)
(mm)		 Schedule 40 Schedule 80 Schedule 120
Wall Thickness
(mm)		 Working Pressure
(kgf/cm² - psi)		 Wall Thickness
(mm)		 Working Pressure
(kgf/cm² - psi)		 Wall Thickness
(mm)		 Working Pressure
(kgf/cm² - psi)
15 - 1/2 21.34 ± 0.10 2.77 ± 0.51 20.7 - 300 3.73 ± 0.51 29.0 - 420 4.32 ± 0.51 35.2 - 510
20 - 3/4 26.67 ± 0.10 2.87 ± 0.51 16.5 - 240 3.91 ± 0.51 23.4 - 340 4.32 ± 0.51 26.9 - 390
25 - 1 33.40 ± 0.13 3.38 ± 0.51 15.5 - 225 4.55 ± 0.53 22.1 - 320 5.08 ± 0.61 24.8 - 360
32 - 1 1/4 42.16 ± 0.13 3.56 ± 0.51 12.7 - 185 4.85 ± 0.58 17.9 - 260 5.46 ± 0.66 20.7 - 300
40 - 1 1/2 48.26 ± 0.15 3.68 ± 0.51 11.4 - 165 5.08 ± 0.61 16.5 - 240 5.72 ± 0.68 18.6 - 270
50 - 2 60.32 ± 0.15 3.91 ± 0.51 9.8 - 140 5.54 ± 0.66 13.8 - 200 6.35 ± 0.76 16.5 - 240
65 - 2 1/2 75.20 ± 0.10 5.16 ± 0.61 10.3 - 150 7.01 ± 0.48 14.5 - 210 7.62 ± 0.91 15.9 - 230
80 - 3 88.90 ± 0.20 5.49 ± 0.66 8.0 - 130 7.62 ± 0.91 13.0 - 190 8.89 ± 1.07 15.2 - 220
100 - 4 114.30 ± 0.23 6.02 ± 0.71 7.6 - 110 8.56 ± 1.02 11.0 - 160 11.10 ± 1.32 15.2 - 220
Normal Size Inch Outside Diameter (mm) (Min - Max) ASTM D 1785 Schedule 40 ASTM D 1785 Schedule 80
1/2 21.24 – 21.64 2.77 – 3.28 3.73 – 4.24
3/4 26.57 – 26.77 2.87 – 3.38 3.91 – 4.42
1 33.27 – 33.53 3.38 – 3.89 4.55 – 5.08
1–1/4 42.03 – 42.29 3.56 – 4.07 4.85 – 5.43
1–1/2 48.11 – 48.41 3.68 – 4.19 5.08 – 5.69
2 60.17 – 60.47 3.91 – 4.42 5.54 – 6.20
2–1/2 60.17 – 60.47 3.91 – 4.42 5.54 – 6.20
3 88.70 – 89.10 5.49 – 6.15 7.62 – 8.53
4 114.07 – 114.53 6.02 – 6.73 8.56 – 9.58

Pressure rating (P.S.I)

Size (inch) 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4
Schedule 40 600 480 450 370 330 280 300 260 220
Schedule 80 850 690 630 520 470 400 420 370 320
×
Advantages
Superior quality
longer lastin
Corrosion & chemical resistant.
safe for carrying drinking water
No algae formation
Poor electrical conductor.
Low installation cost
Low maintenance cost
Key Features
High Durability
ASTM pipes are known for their long-lasting performance, designed to withstand harsh environmental conditions, including extreme temperatures and high-pressure applications.
Integrity
Corrosion Resistance
Made from materials like steel, PVC, and copper, ASTM pipes are resistant to corrosion, ensuring a longer lifespan and reducing maintenance needs, even in aggressive environments.
Innovation
Standardized Quality
Manufactured according to strict ASTM standards, these pipes provide reliable and consistent quality, ensuring safety and performance across various industries.
Empowerment
Versatile Applications
ASTM pipes are versatile and used in a wide range of applications, including water distribution, gas lines, industrial processes, and sewage systems, making them ideal for both residential and commercial use.
Customer Centricity
Applications
Applications
These are the reliable piping systems ensure efficient water supply for residential, commercial, and industrial distribution. It also facilitates the safe transport of gases in commercial and industrial setups.
