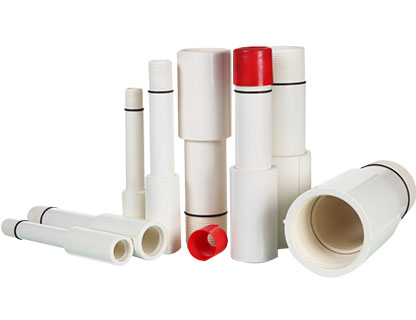

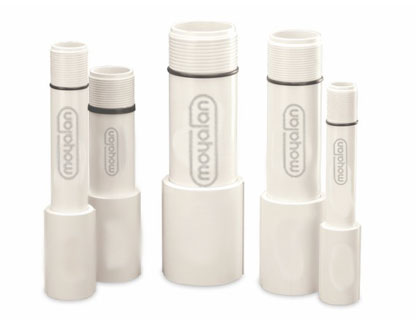

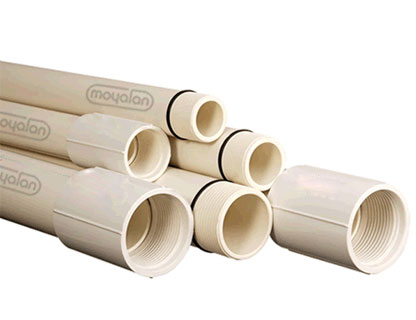

COLUMN PIPES (SUBMERSIBLE) (1 INCH -4 INCH)
Column pipes have been specially designed and manufactured under stringent quality standards and are offered to lift the water from the wells. They are tested to withstand system load comprising of pump, water and pipe weight with adequate factor of safety. These pipes are supplied with separate couplers and are integrally locked with the pipes. Couplers are locked using wire lock and also with brass rivet.
FEATURES:
- Cost effective
- 100% leak proof
- Smooth handling
- Non-Corrosive
Compared to G.I. Pipes MoyalanColumn pipes arerust proof and prevent rust formation.
- Light in weight
Column Pipes are light in weight compared to G.l.Pipes. As such installation is easy and maintenance cost is also cheap
- Non - Toxic
It does not change colour, Odour & Taste of the water. • Hygienic : It does not support any bacterial growth.
- High Tensile Strength
These pipes are having High Tenstile Strength of 55 + 5Mpa.
- High Impact Strength
- Low Power Consumption
As these pipes have smooth internal surface, less energy isrequired to pump the water, as compared to the energy required for pumping water underconventional system
- More grip for coupler tightening due to high rib dimensions.
Advantages:
- High tensile strength and high pressure rating.
- Excellent pull out strength.
- Pipe & Coupler having square thread for excellent mechanical properties and easy in assembly and disassembly.
- 100% leak proof
- Smooth handling
- Maximum load carrying capacity
- Excellent pull out strength.
- Pipe & Coupler having square thread for excellent mechanical properties and easy in assembly and disassembly
- Low friction losses due to excellent smooth internal surface.
- Resistant to chemical reaction, bacterial growth, corrosion, rusting etc.
SPECIFICATION
| Nom. | Dia. | Ultimate breaking load (kg) | Safe pulling load with chain pulley (kg) |
Safe allowable pressure (kgf/cm2) | Safe pump delivery head (m) |
|---|---|---|---|---|---|
| mm | inch | ||||
| 25 | 1 | 1425 | 725 | 16 | 160 |
| 1825 | 1325 | 30 | 300 | ||
| 32 | 1 1/2 | 2125 | 1225 | 15 | 150 |
| 2625 | 1525 | 25 | 250 | ||
| 40 | 1 1/2 | 2525 | 1325 | 15 | 150 |
| 3025 | 1725 | 26 | 260 | ||
| 50 | 2 | 2825 | 1525 | 13 | 130 |
